Athletic Equipment Deficiencies

Almost every OEM recommends inspections of their overhead athletic equipment be done a minimum of once every year (some recommend twice a year).

In our years of inspecting athletic equipment we’ve often found components & parts that are  not rated for overhead lifting or have not been installed properly.

Below are just a small sample of some of the deficiencies (safety concerns) we find during our inspections.  We not only inspect athletic equipment, we offer complete repairs and or replacement.

#10 Hoop (3)

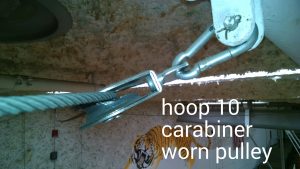

EXCESSIVE PULLEY WEAR – This wire rope cable has wore almost completely through the pulley sheave.  Also a carabiner is being used which is not rated fro overhead lifting.

Bad Bolt

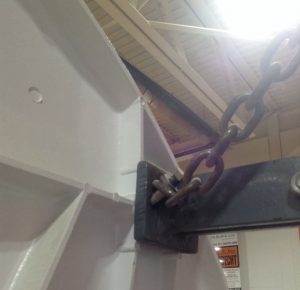

IMPROPER HARDWARE USE – This bolt has been used as an attachment point and has bent from upper force.

Bad Electrical

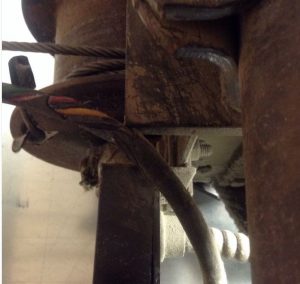

BAD ELECTRICAL – These wires have the outer jacket worn off.

Bad Pulley

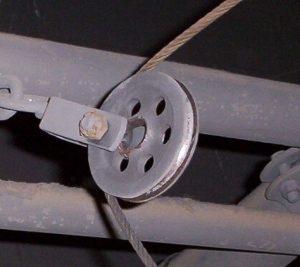

EXCESSIVE PULLEY WEAR – This pulley has the inner bolt mount being hollowed out.

Bad Sheave

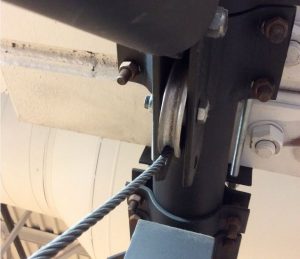

EXCESSIVE SHEAVE WEAR – This sheave has the inner bearing and outer walls worn.

Bad Wire Rope

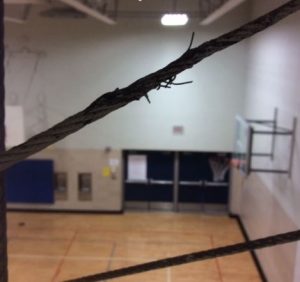

BAD WIRE ROPE – This wire rope cable has many broken wires.

Cracked Block

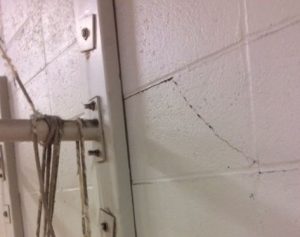

CRACKED WALL/FOUNDATION – These wall blocks are cracked and structure is separating from the wall.

Cracked Mounting

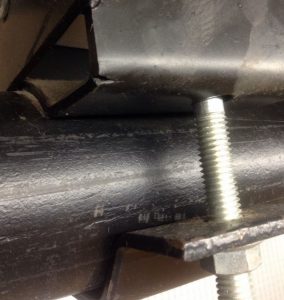

CRACKED MOUNTING HARDWARE – Steel is cracking at the bend on this pipe clamp.

Large Gym #4 East Center (2)

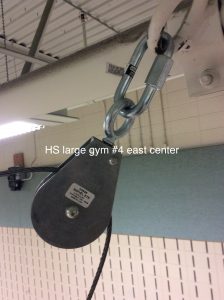

QUICK LINKS – Quick links should not be used for over head lifting.  They often open and can then stretch.

Photo 011909003

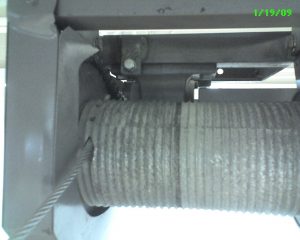

3 WRAPS – Wire rope cable needs 3 wraps on the winch drum.  This is required by most all winch manufacturers/OEM’s.  This creates a stronger bond with the drum, helps to wrap cable on drum correctly and eases friction on the point where the wire rope attaches to the drum.

Photo 021709002A

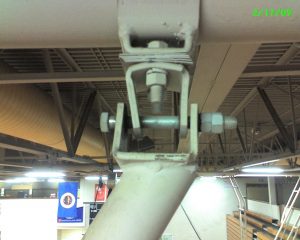

BENT HANGER BRACKET – Bent brackets create a weak spot and need to be repaired.

Photo 032009002

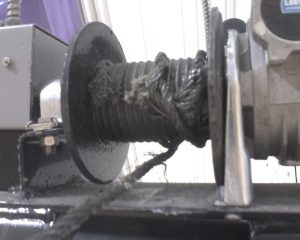

WIRE ROPE THAT NEEDS REPLACEMENT – Over time wire rope cable can overlap on itself, wrap wrong on the drum and many other scenarios which cause wear.

Photo 033108001

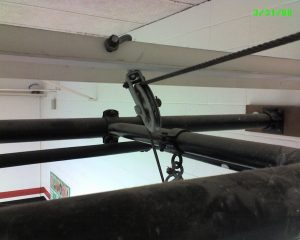

INCORRECT PULLEY HANGER – This pulley is wrapped around and putting incorrect stress on the structure.

Photo 033108003

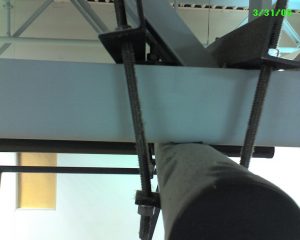

INCORRECT MOUNTING OF OVERHEAD STRUCTURE – These threaded rods are bent which causes weakness.

Photo 040208001

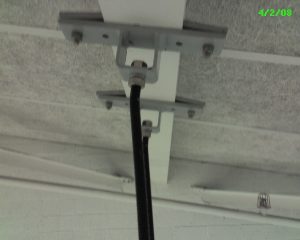

HANGER RODS SHOULD BE STRAIGHT – Any and all rod used for hanging structure should be straight, bend rods are a weak spot.

Poor Safety Strap Mount

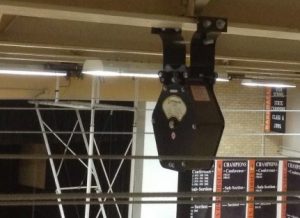

POOR SAFETY STRAP MOUNTING – This is mounted using an improper method

Sandwich Quicklink

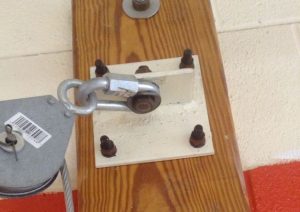

IMPROPER MOUNTING – This quick link is sandwiched between a bracket and washer and could easily let loose.
